Measuring of Planet Carrier

horizontal measurement of external diameter

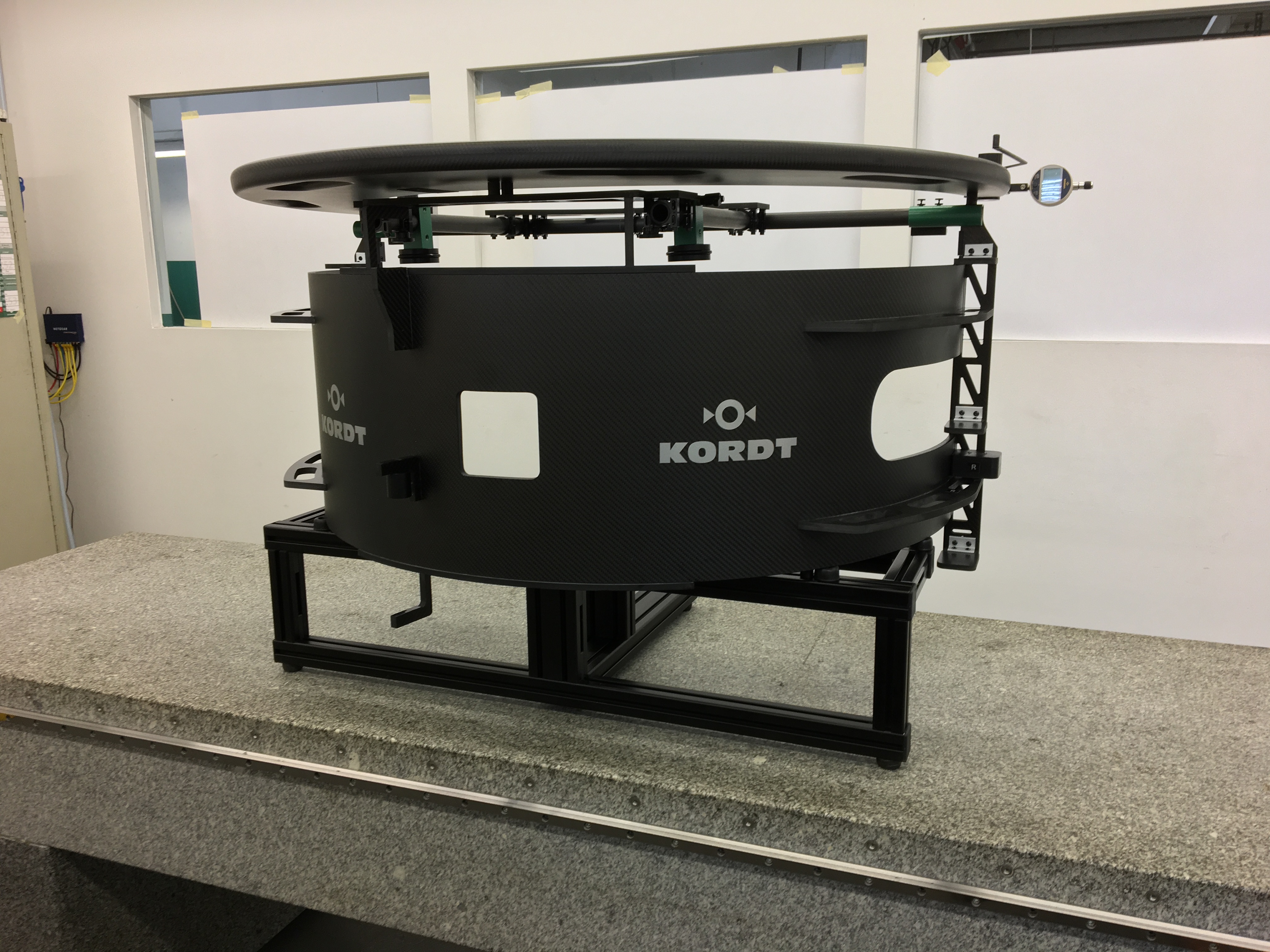

When using vertical turning mills, an horizontal measurment in the machine is required. To determine outer diameters in the machinethe gauge must be hold in a horizontal orientation. In addition often the measuremnt must be taken in verious levels. By using CORDAMETER for this application verious solutions are given. The use of an rack the measurement is eased: The rack will be put on the component in the machine. After that the precision comparator will be put on the verious levels for measurement. The result can be transfered via blue-thooth. Ater the measurement the rack will be taken out of the machine and further machining can be done.

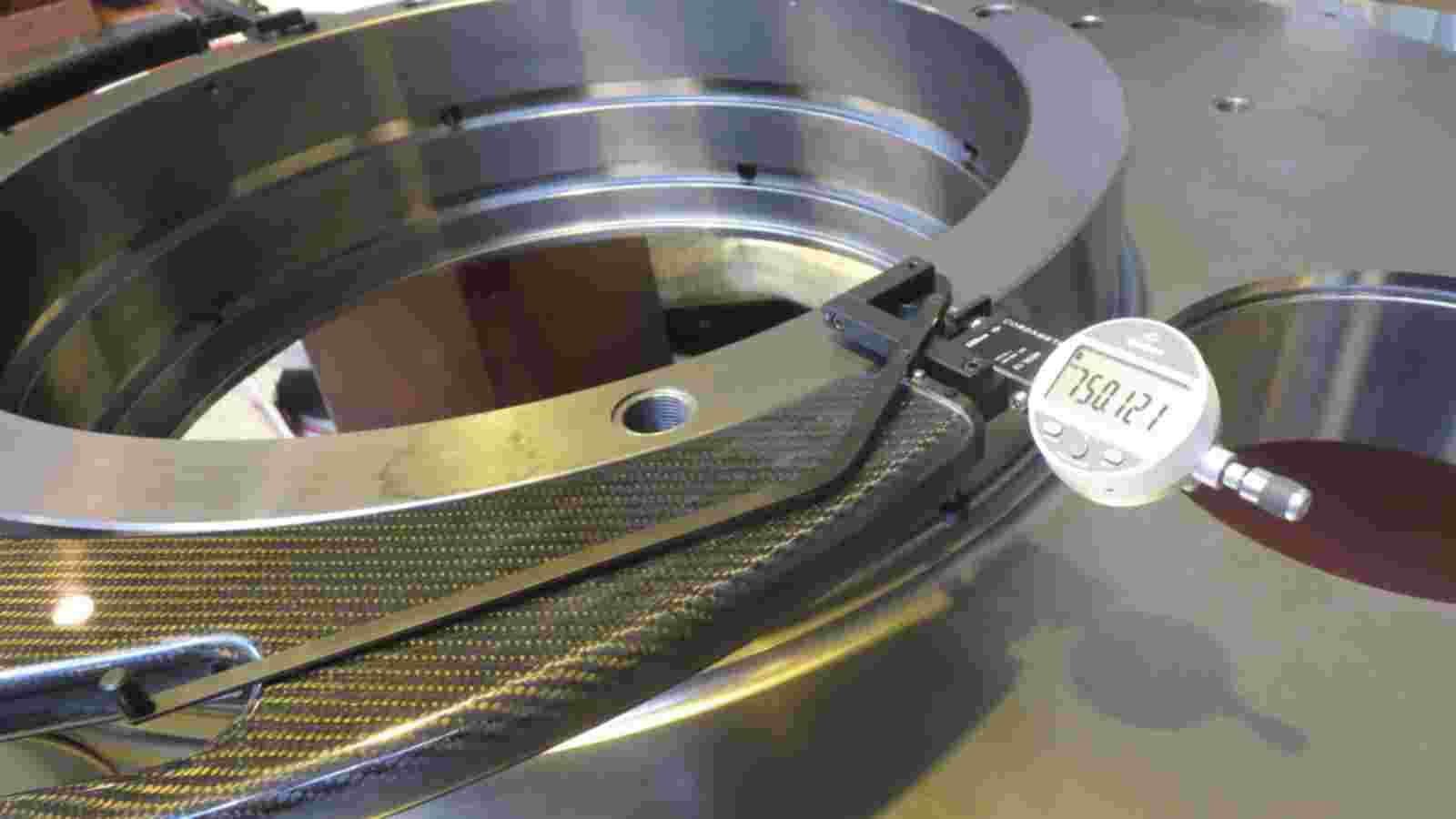

For large diameters the rack will be executed out of carbon fiber. This makes the use ergonomical and can be done be one person only. The same with CORDAMETER!

VIDEO: horizontal measurement with CORDAMETER assists with a support rack
